8.5m forest crane cargadora forestal

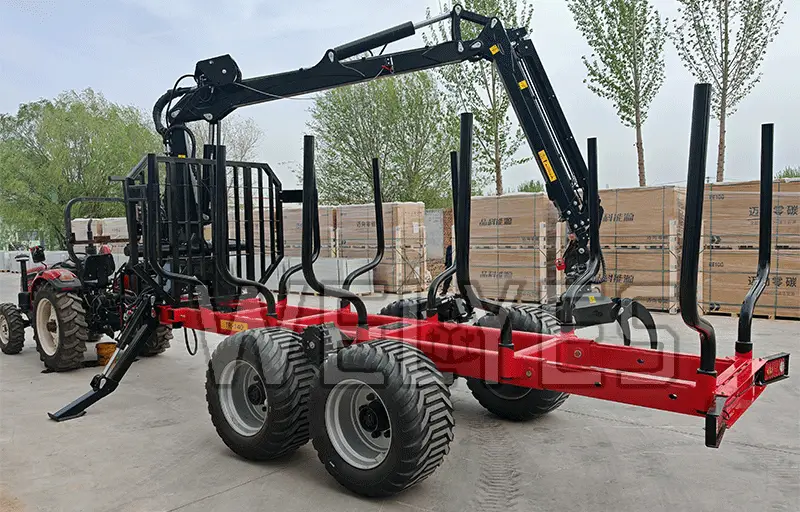

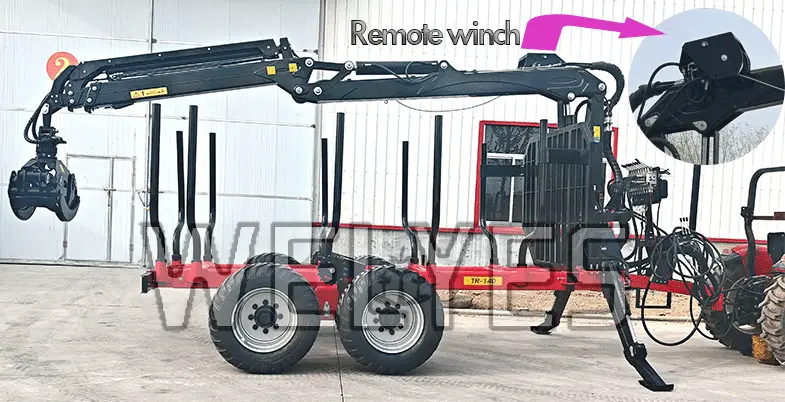

TC850L forest timber crane has heavy-duty base with large vertical hydraulic cylinder, and the max reach length is 8500mm 28ft, adapts GR-40F hydraulic rotary motor to enhance the lifting capacity of the hydraulic grapple. Besides, there’s remote winch on the big arm to help drag heavier logs or timbers.
This 8.5m remote Control Rotating Grapple crane uses electro-hydraulic proportional valve to control rotary base, arms, telescopic section and hydraulic grapple. more popular in our customers.
| Model | TC850L |
| Arm length (m) | 8.5 |
| Rotary torque (kn.m) | 19 |
| Rotation angle | 380° (right 190°, left 190°) |
| Number of rotating cylinders(piece) | 4 |
| Lifting force at 4 m (kg) | 1507 |
| Lifting force at full length (kg) | 658 |
| Grab swing brake from side to side | yes |
| Grab swing brake back and forth | yes |
| Telescopic boom structure | yes (two section telescopic arm) |
| Boom 360° rotary valve | 1pcs |
| One-way throttle valve for 360° rotation of boom | 2pcs |
| Balance valve | 1pcs |
| Recommended hydraulic oil flow (l/min) | 45-70 |
| Working pressure (mpa) | 22 |
| Standard rotary motor | GR-40F (4T flange type) |
| The standard grab | TG26 (max opening size 1470mm) |
| Total weight (support leg&valve excluded) | 1556 |
| Surface coating | Spray powder-coated (standard color: big and small arms, column base, fixture teeth are red, others are black; OEM color accepted) |
| Hydraulic tubing | The oil inlet diameter is 16and the oil return diameter is 19, which is matched with G3 / 4 “quick connector. The forearm of main boom is equipped with external iron tubing |
| Weight (kgs) of support legs | 213kgs |
| hyrdraulic system of outriggers | Hydraulic system with hydraulic lock, prevent oil leakage in the hydraulic circuit, resulting in insufficient support rigidity, or prevent the malfunction of the hydraulic cylinder |

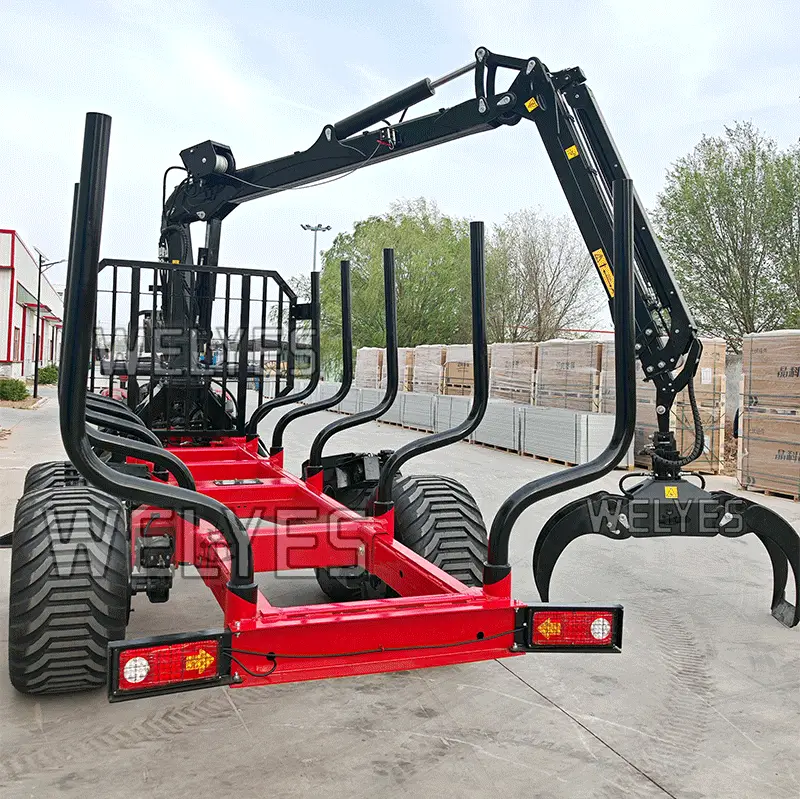

forest loader 14t installed on the tractor with PTO system and air brake system. besides, there’s extension beam at the end of the trailer loading area, the length is about 900mm, so the quantity of blocking pipe is 2pcs more than standard tractor trailer.
| Model | TR140 |
| Air brake system | yes (four wheels with brake disc 1061 type) |
| Rear light for warning | yes (more safe at environment with poor visibility) |
| Loading capacity (kgs) | 14,000 |
| Matched tractor power (hp) | 100-150hp |
| Loading area (m3) | 3.0 |
| Beam size (mm) | 2000*1000*80 |
| Total length (mm) | 6,290 |
| Trailer loading length (mm) | 4,030 |
| Total width (mm) | 2,480 |
| Tyre model | 500/50-17 |
| Quantity of tyre (pcs) | 4 |
| Traction swing | 40° |
| Extension beam | yes (about 900mm extension) |
| Blocking pipe (pcs) | 10 (2pcs More Than Standard Model due to the extension beam)) |
