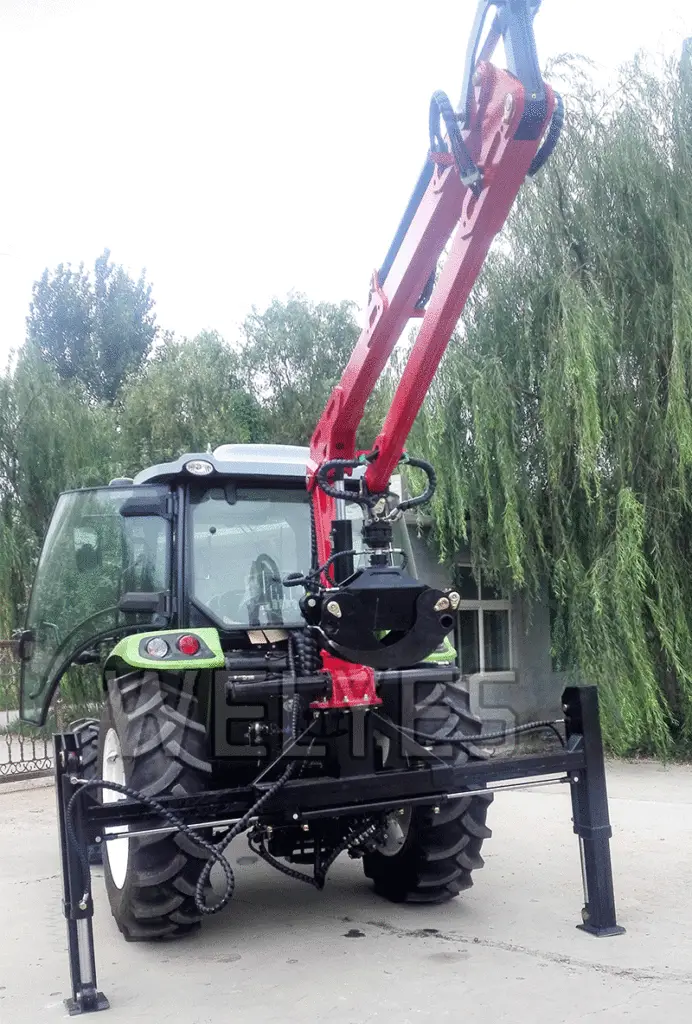

Forest crane Machine Wood Trailer Loader Tractor usually consists of a rotating arm and a clamp. This structure allows the wood grabber to flexibly grab and carry various strip materials. In addition, the wood grabber can be installed on different chassis according to actual needs, such as tractors, forklifts, dump trucks, etc., to adapt to different working environments and needs
The main function of the wood grab machine is to load, unload and carry the wood, wood, reeds, straw and various strip materials: the front end of the wood grab machine is a wood grab machine, which is mainly used for the loading, unloading and handling of strip materials such as wood and wood.
Technical parameters of Log Crane Hydraulic Timber Crane Tractor Mount Log Loader Crane Wood Grapple Machine
| Model | TC420 | TC470L | TC550L | TC650L | TC700L | TC780L |
| Arm length (m) | 4.2 | 4.7 | 5.5 | 6.5 | 7 | 7.8 |
| Rotary torque (kn.m) | 11 | 11 | 11 | 18 | 18 | 18 |
| Rotation angle | 380° (left190,right190) | 380° (left190°,right190°) | 380° (left190°,right190°) | 380° (left190°, right190°) | 380° (left190°,right190°) | 380° (left190°,right190°) |
| Number of rotating cylinders(piece) | 4 | 4 | 4 | 4 | 4 | 4 |
| Lifting force at 4 m (kg) | 580 | 580 | 770 | 2000 | 1900 | 1880 |
| Lifting force at full length (kg) | 480 | 510 | 540 | 1100 | 800 | 720 |
| Grab swing brake from side to side | yes | yes | yes | yes | yes | yes |
| Grab swing brake back and forth | yes | yes | yes | yes | yes | yes |
| Telescopic boom structure | no | yes (one section telescopic boom, telescopic stroke about 850mm ) | yes (one section telescopic boom telescopic stroke about 1m) | yes (one section telescopic boom, telescopic stroke 1.3m) | yes (two-section telescopic boom, telescopic stroke 1.6 meters) | yes (two telescopic boom, telescopic stroke 2.5 meters) |
| Boom 360° rotary valve | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs |
| One-way throttle valve for 360° rotation of boom | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs |
| Balance valve | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs |
| Recommended hydraulic oil flow (l/min) | 30-45 | 30-45 | 40-50 | 45-55 | 45-70 | 45-70 |
| Working pressure (mpa) | 20 | 20 | 20 | 20 | 22 | 22 |
| Standard rotary motor | GR-10 (1T Pin shaft) | GR-10 (1t pin shaft) | GR-30F (3t flange type) | GR-30F (3T flange type) | GR-30F (3T flange type) | GR-30F (3T flange type) |
| The standard grab | TG08 (Maximum Opening 800mm） | TG18 (Maximum Opening 1080mm） | TG20 (Maximum Opening 1260mm) | TG20 (Maximum Opening 1260mm) | TG26 (Maximum Opening 1470mm) | TG26 (Maximum Opening1470mm) |
| Total weight (no leg, valve block) | 680kgs | 705 | 770kgs | 1000kgs | 1150kgs | 1210kgs |
| Surface coating | Spray powder-coated (big and small arms, column base, fixture teeth are red, others are black) | |||||
| Hydraulic tubing | The oil inlet diameter is 16and the oil return diameter is 19, which is matched with G3 / 4 “quick connector. The forearm of main boom is equipped with external iron tubing | |||||
PTO system for tractor mounted log cranes with hydraulic grapple
The role of PTO system (power take-off) in trailers is to extract power from the tractor engine, provide it with additional driving capacity, drive hydraulic pumps, compressors and other equipment, so as to improve the versatility and operational efficiency of the trailer, PTO system is widely used in a variety of commercial vehicles, such as trucks, trailers and agricultural machinery, etc., especially suitable for scenarios that require additional power
Features of the PTO system:
1. Versatility: The PTO system can extract power from the vehicle’s main engine to drive hydraulic pumps, compressors, and other equipment to enhance the vehicle’s versatility
2. Installation position: PTO axle can be installed in the rear (rear-mounted), front (front-mounted) or side (side-mounted) of the tractor, and the appropriate installation position can be selected according to different needs
